SERIE 400 Asenera 4 snodi H=38

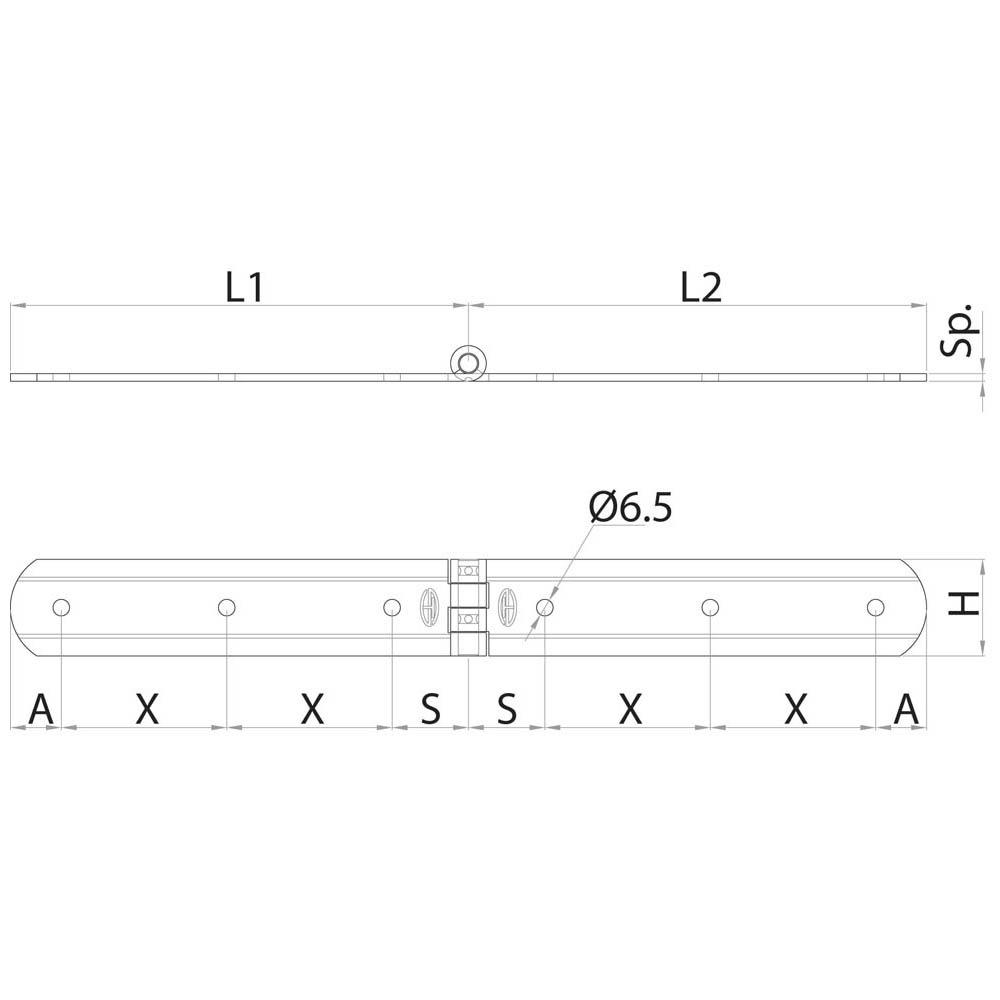

DISEGNO TECNICO

Articolo Codice L1+L2 HxSp nº;L1 nº;L2 S X A Pcks Listino B2B
0-400-05 B400G001A502 100 + 100 38 x 3 2 2 30 50 20 12 //
0-400-10 B400G003A502 150 + 150 38 x 3 3 3 30 50 20 12 //
0-400-15 B400G005A502 180 + 180 38 x 3 3 3 30 65 20 12 //
0-400-20 B400G004A502 210 + 210 38 x 3 3 3 30 80 20 12 //
0-400-25 B400G002A502 240 + 240 38 x 3 3 3 30 95 20 12 //
Articolo Codice L1+L2 HxSp nº;L1 nº;L2 S X A Pcks Listino B2B
4-400-05 B400G001E502 100 + 100 38 x 3 2 2 30 50 20 12 //
4-400-10 B400G003E502 150 + 150 38 x 3 3 3 30 50 20 12 //
4-400-15 B400G005E502 180 + 180 38 x 3 3 3 30 65 20 12 //
4-400-20 B400G004E502 210 + 210 38 x 3 3 3 30 80 20 12 //
4-400-25 B400G002E502 240 + 240 38 x 3 3 3 30 95 20 12 //
Articolo Codice L1+L2 HxSp nº;L1 nº;L2 S X A Pcks Listino B2B
5-400-05 B400G001F502 100 + 100 38 x 3 2 2 30 50 20 12 //
5-400-10 B400G003F502 150 + 150 38 x 3 3 3 30 50 20 12 //
5-400-15 B400G005F502 180 + 180 38 x 3 3 3 30 65 20 12 //
5-400-20 B400G004F502 210 + 210 38 x 3 3 3 30 80 20 12 //
5-400-25 B400G002F502 240 + 240 38 x 3 3 3 30 95 20 12 //

Materiale:

Finitura:

A richiesta:

Categoria Commerciale: B0

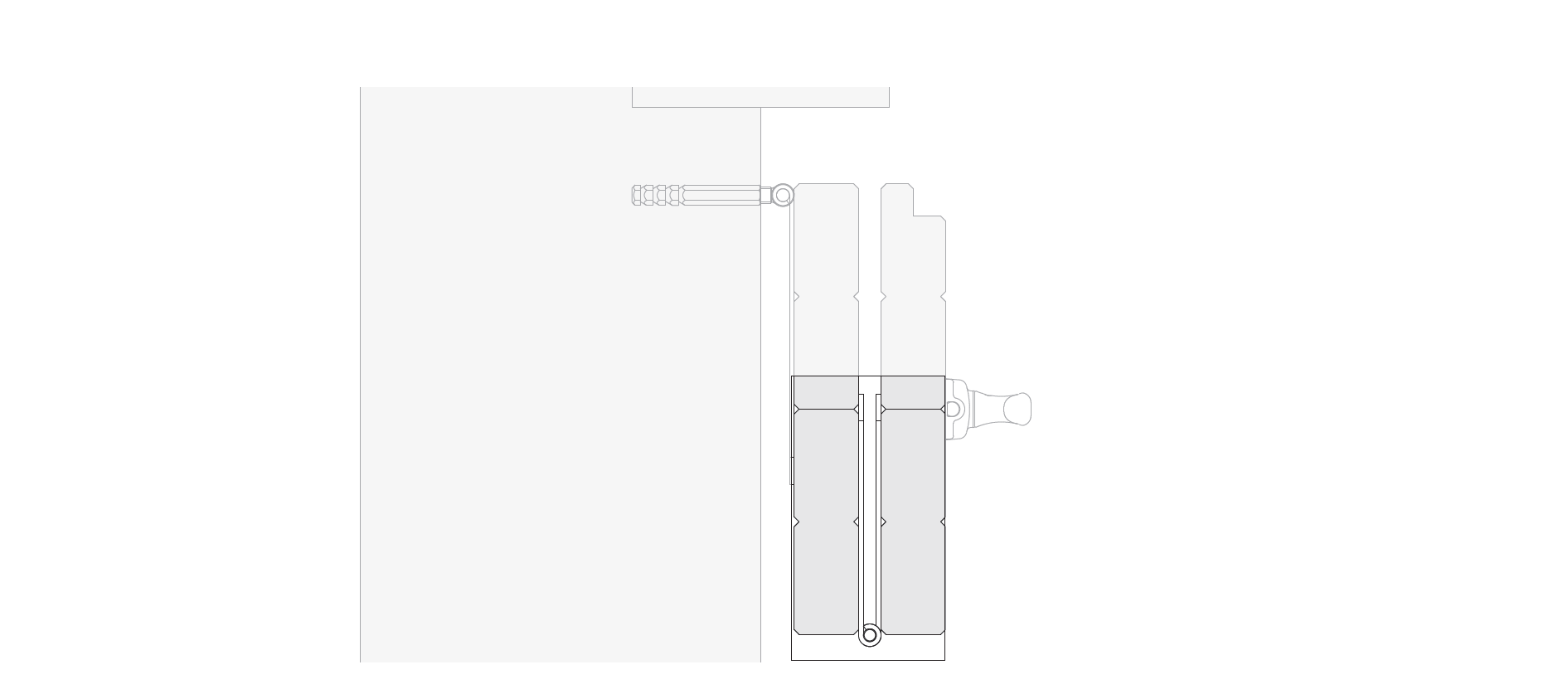

APPLICATIVO
